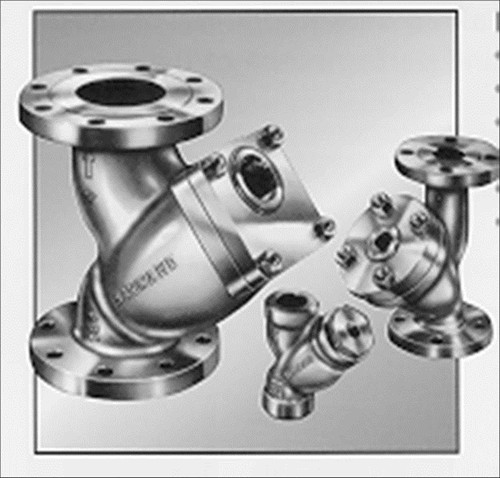

型号: 85.

          材质: 铸铁，黄铜和不锈钢.

          尺寸: ¼” - 10”

          等级: 150# -600#.

          温度: 高达 538 ℃.

          滤网目数: 40-400

          打孔滤篮尺寸: 1/32” - ½”

          连接: 法兰, 承插焊接, NPT 螺纹.

          垂直或水平安装.

          Steel & Stainless Steel

       铸钢&不锈钢

          Threaded & Bolted Blow downs螺纹、螺栓放水口

          Non-asbestos gasket

       非石棉垫

          150# - 300# - 600#

          Threaded, SWE & Flanged

       螺纹、法兰连接

          1/4” thru 10”

       接口尺寸： 1/4” ~10”

WHAT WILL A Y-STRAINER DO
Y型过滤器的用途

          Remove solids from flowing fluids and vapor lines

       除去流动液体和蒸气线中的固体杂质

          Protect equipment

       装备保护

n         Pumps, meters, control valves, steam traps and regulators

       水泵，计量器，控制阀，汽水分离器和调整器

         Employed where the amount of debris to be removed is small

       用于去除少量的杂质

          Installed in either a horizontal or vertical line

       以水平和竖直的方式安装

          Can be blown down when screen cleaning is required

       当过滤器需要清洗时可以放水冲洗
